Description

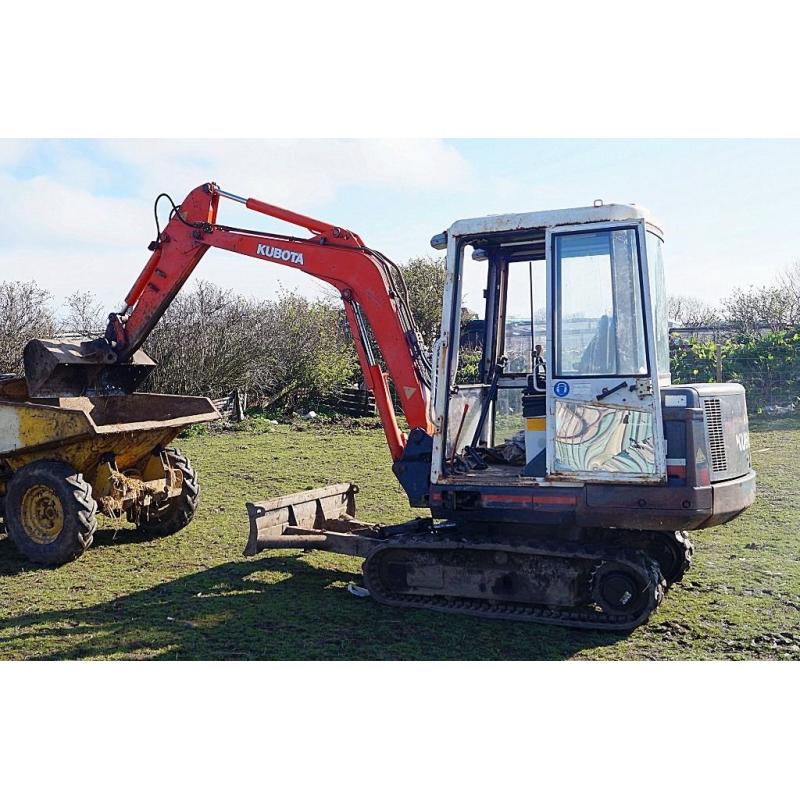

Kubota KX71
Weight
Operating weight (metric tons):
2.866
Operating weight (lbs):
6,305
Bucket
Bucket width, min-max (in):
12" - 36"
Bucket capacity, SAE heaped min-max (cu ft):
1.9 - 4.25
Engine
Engine make:
Kubota
Engine model:
V1505
Net hp:
23.1
Hydraulics
Total flow of main pumps, implement & swing (gpm):
21.8
Max relief valve pressure (psi):
3,129
Performance
Arm (stick) length used for dimensions & forces (ft/in):
4' 5.2"
Max dig depth (ft/in):
9' 9"
Max depth of vertical wall (ft/in):
6' 5"
Reach @ ground level (ft/in):
16' 0"
Dump height (ft/in):
10' 5"
Boom swing, right/left (deg):
60° / 80°
Bucket digging force (lbs):
6,350
Arm (stick) force (lbs):
3,285
Lift over end, 10' radius @ ground (lbs):
1,340
Lift over side, 10' radius @ ground (lbs):
940
Blade
Blade (std, opt, none):
Std
Max blade width (ft/in):
4' 11"
Track
Track shoe or rubber track width (in):
12"
Max travel speed (mph):
2.8
Max drawbar pull (lbs):
7,100
Dimensions
Transport length (ft/in):
14' 11.1"
Transport height (ft/in):
7' 11"
Transport width (ft/in):
4' 11"
Tail overhang over side (in):
13.5"
Length of track on ground (ft/in):
5' 1"
